Products / Control Panels

Control Panels

Integrated hydraulic, pneumatic and safety-control packages for wellhead and valve automation.

Quadrant Canada control panel
Product range

Wellhead & Valve Control

Control packages configured around valve function, fail-safe philosophy and site utilities.

Wellhead Control Panel

Wellhead Control Panel

Enclosed local control panel for wellhead and safety functions.

WHCPLocal control

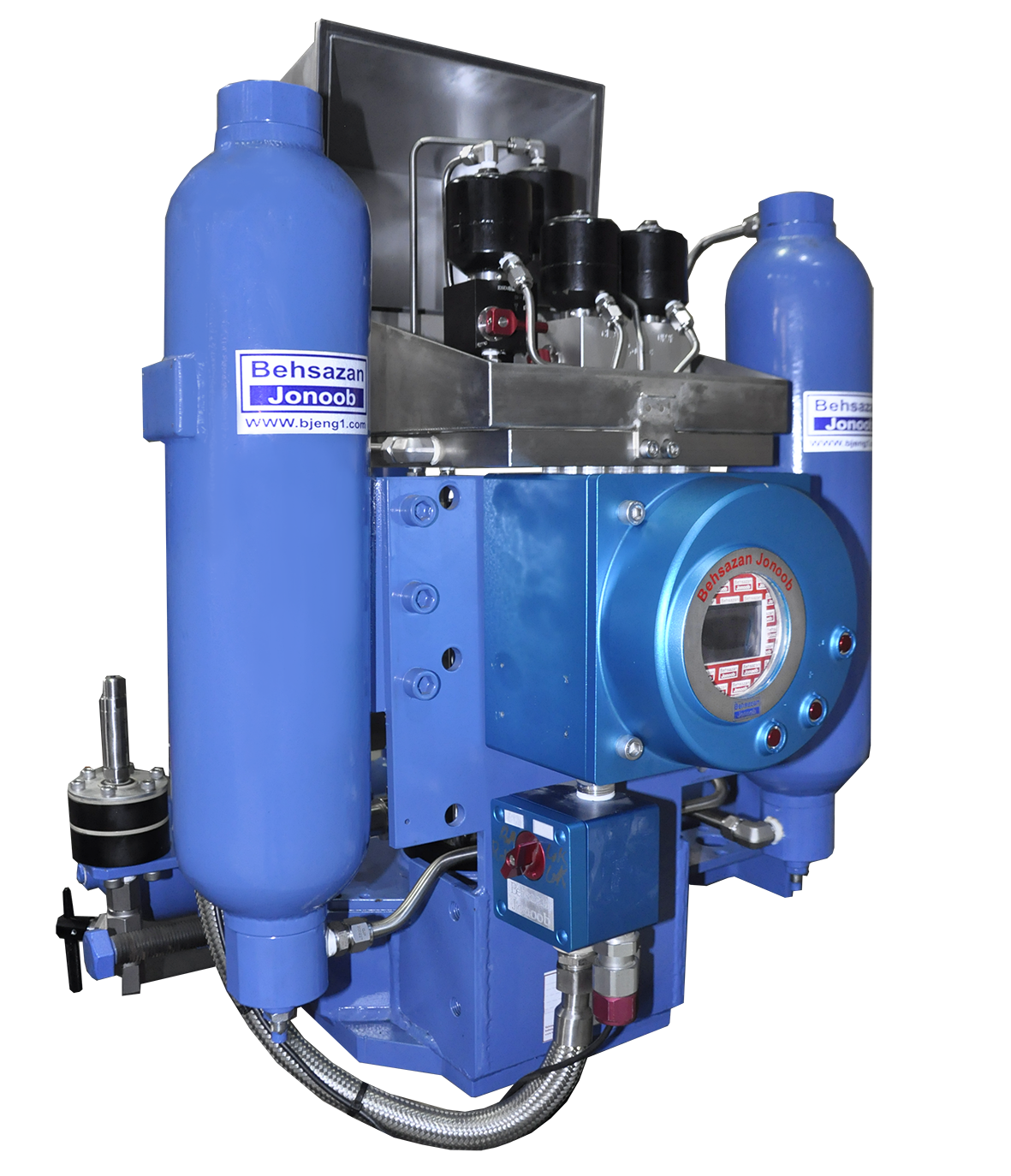

Hydraulic Control Module

Hydraulic Control Module

Hydraulic accumulator and control module for valve actuation.

HydraulicAccumulator

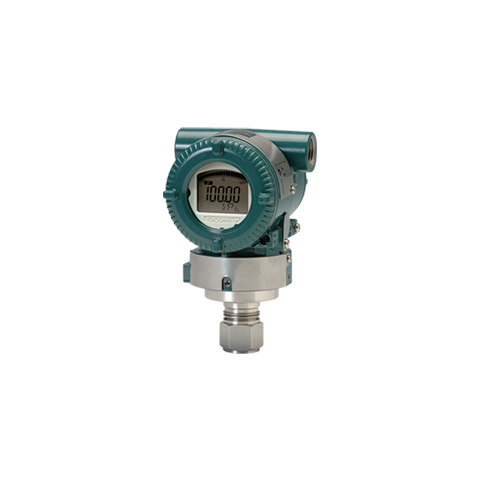

Initiator / Field Instrument

Initiator / Field Instrument

Field sensing or initiating element for control and shutdown systems.

InstrumentInitiator
Product range

Integrated Safety Packages

Final elements, controls and instrumentation can be combined around a project safety philosophy.

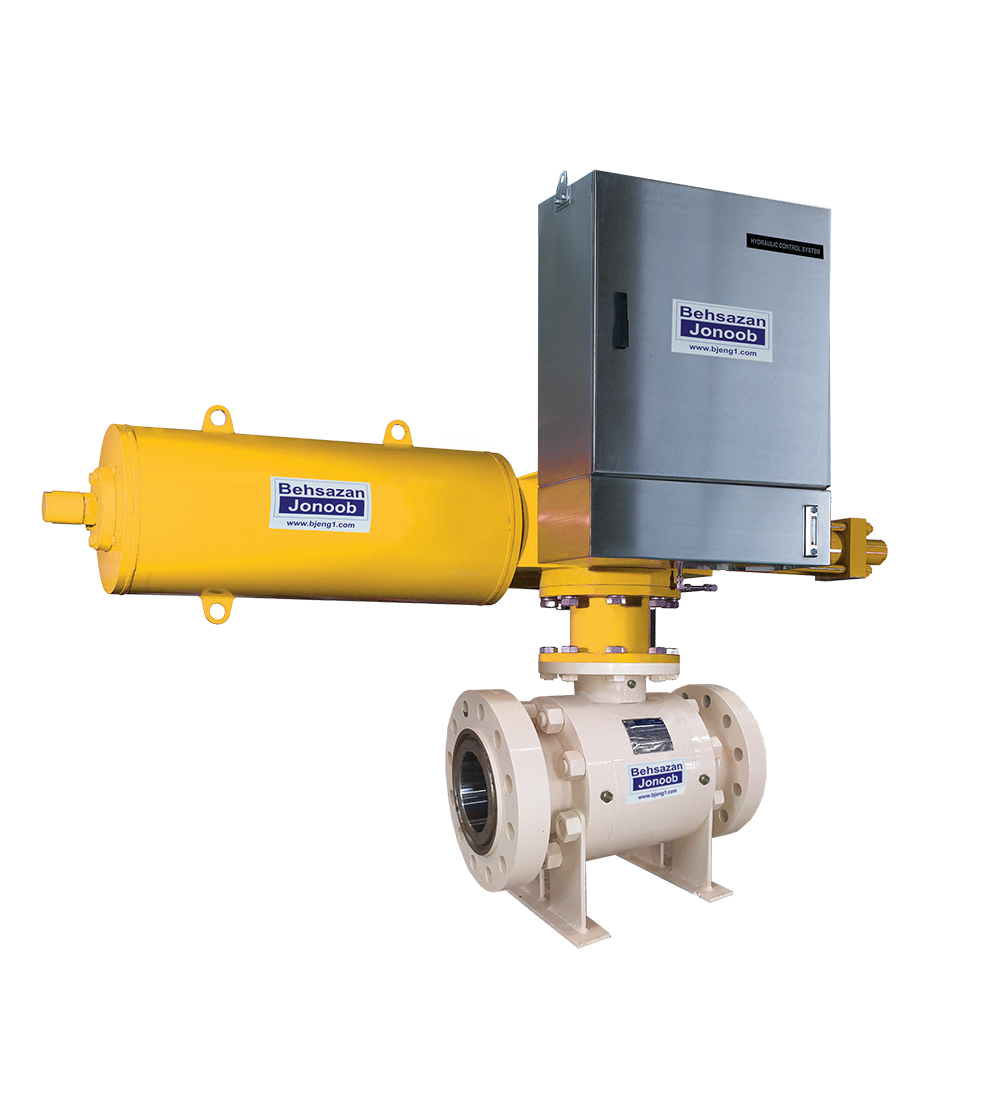

Electro-Hydraulic Final Element

Electro-Hydraulic Final Element

Actuator and hydraulic power/control package.

E-HFinal element

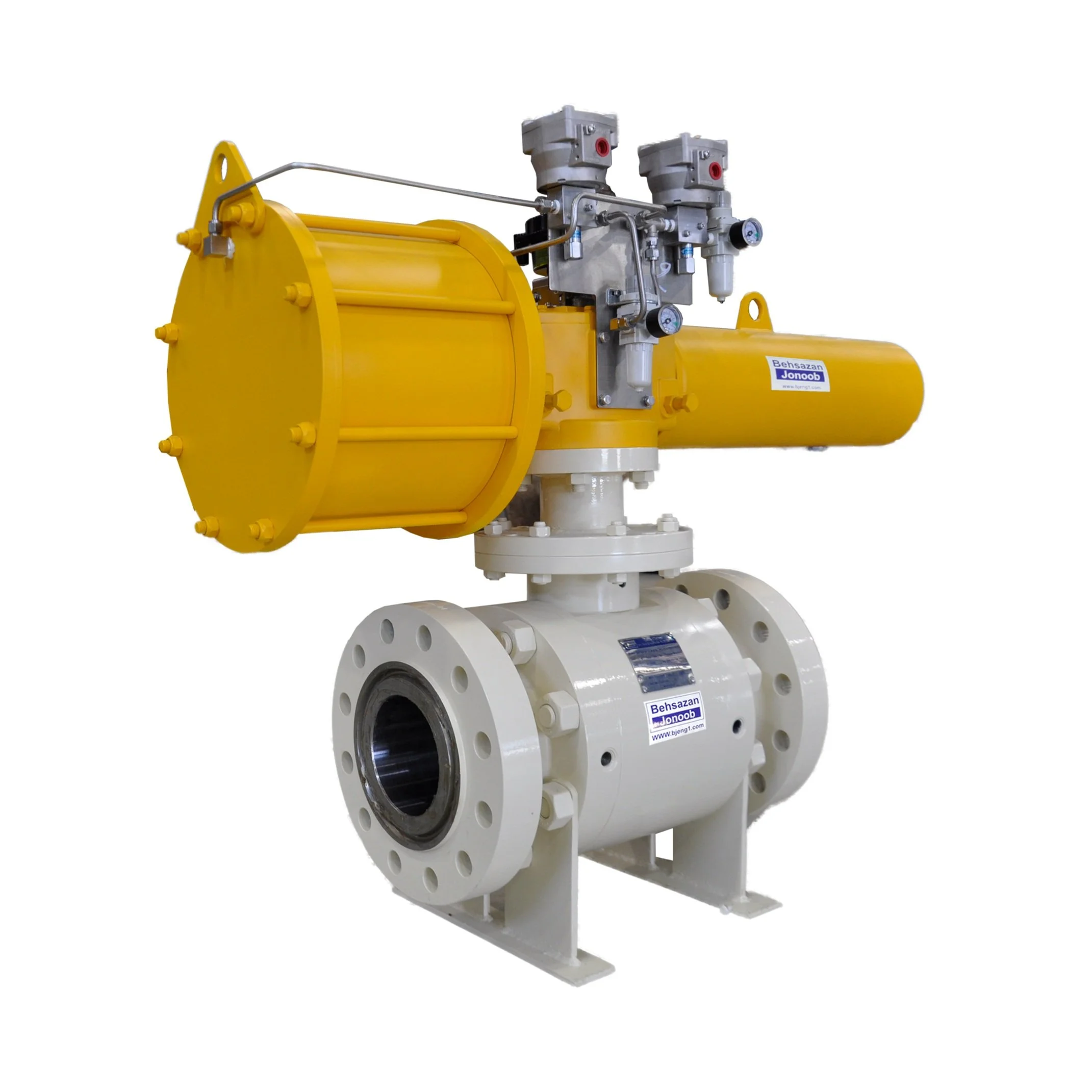

Actuated Shutdown Valve

Actuated Shutdown Valve

Valve-actuator package for emergency isolation.

ESDValve package
Assembly & Test

Assembly & Test

Integrated assembly and functional testing environment.

AssemblyFAT
Control philosophy

Define cause & effect before hardware selection.

LogicLocal sequence, permissives, trips and reset philosophy.
Power mediumHydraulic, pneumatic or electro-hydraulic architecture.
InterfacesField instruments, solenoids, position feedback and plant DCS/ESD.
